Quick Details

  • Place of Origin: Shanghai, China (Mainland)
  • Brand Name: ShowRange
  • Model Number: SR1811/12, SR2822FN/25FN/25SFN/28/55/55S/01F/01N/01FN

Packaging & Delivery

Packaging Details: blue plastic hand box, standard export carton
Delivery Detail: within 2-30 DAYS depends on ORDER QTY

Specifications

thickness meter, thickness gauge, thickness tester, coating thickness meter, coating thickness gauge, coating thickness tester

thickness meter, thickness gauge, thickness tester, coating thickness meter, coating thickness gauge, coating thickness tester



Model: SR1811



Model: SR1812

Model: SR1816/SR1816C

Specification

Model

SR1810

SR1811

SR1812

SR1812C

SR1816, SR1816C

Measuring range

Metric Imperial

1.5-200mm,0.06-8inch

1.2-225mm,0.05-9inch

1.0~200mm (45# steel)

Operating principle

Ultrasonic

Materials measured

Only 11types of materials, including Steel, Cast iron, Aluminum, Red coppper, Brsaa, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

Any hard materials, including Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron and other materials.

Sound velocity

--

500-9000m/s

Lower limit steel pipes

15x2.0mm, 20x3.0mm determined by the transducer

Calibration block

included

Resolution

0.1mm

0.01mm

0.1mm
(SR1816C 0.01mm)

Accuracy

±(0.5%n+0.2)

±(0.5%n+0.1)

RS-232C interface

--

--

With RS-232C

Power supply

4x1.5VAA (UM-3) battery

4x1.5VAAA (UM-4) battery

Battery indicator

low battery indicator

Operating conditions

Temperature: 0~40ºC; Humidity: 10~90%RH

0-+45ºC(32°F-104°F),90%RH

Dimensions

160x68x32mm

120x62x30mm

135x65x27mm (5.3x2.6x1.1 inch)

Weight (Not including battery)

208g

164g

120g

Standard delivery

Main unit

1

1

5M Φ 8 transducer

1

--

Couplant

1

--

Test block

--

1

Ultrasonic sensor

--

1

Instruction manusl

1

1

Carrying case

1

1

Optional Accessories

6M Φ 6MM thin Material probe

Measuring range (steel): 1.0~50.0mm
Operating temperature: -10~+60°C

--

5M Φ 12 high temperature probe

Measuring range (steel): 1.2~225.0mm (normal temperature)
Measuring range (steel): 4.0~100.0mm (high temperature)
Operating temperature: -10~+300°C

--

RS-232C Cable & software, USB Cable & software, Bluetooth data output

Available only for SR1812 & SR1812C

RS-232C Cable & software, USB Cable & software, Bluetooth data output

Model: SR2822FN

Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1000um
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AA(UM-3)battery

Model: SR2825FN
In built probe(s)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery

Model: SR2825SFN
With separate probe(s)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery

Model: SR2828
In built probe(s)
Operating principle: magnetic induction/eddy current (F/NF)
Measuring range:0-1250um/0-50mil
Resolution; 0.1/1
Accuracy: ±1-3%n or ±2.5um
Min. measuring area: 6mm
Min. sample thickness: 0.3mm
Battery indicator: low battery indicator
Metric/ imperial: convertible
Power supply: 4x1.5V AAA(UM-4)battery

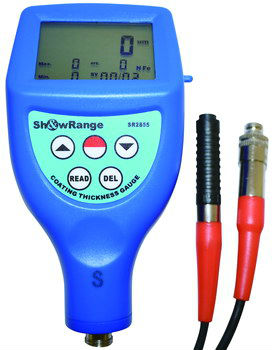

SR2855 (in-built probe) SR2855S (separate probe)

* Can store 99 groups of measurements.

* Statistics is available.

2.SPECIFICATIONS

Display: 4 digits LCD, backlit

Range: 0~1250 μm/0~50mil (other ranges can be specified )

Min.radius workpiece: F: Convex 1.5mm/Concave 25mm

N: Convex 3mm/ Concave 50mm

Min. measuring area: 6mm

Min.Sample thickness : 0.3mm

Resolution: 0.1 μm (0~99.9μm); 1 μm (over 100μm)

Accuracy: ±1~3%n or 2.5 μm or 0.1mil (Whichever is the greater)

Bttery Indicator: Low batter indicator.

PC interface: with RS-232C or USB interface (optional)





SR2801 Sereies Coating Thickness Gauge

Model: SR2801F, SR2801N, SR2801FN.

Feature:
-Includes F type (
SR2801F), NF type (SR2801N) and F/NF 2 in 1 type (SR2801FN)
-Has CE marking, conforms with the essential health and safety equirements set out by the European Directives
-The F type probe for measuring the thickness of non-magnetic coating on Ferromagnetic base (e. G. Iron, nickel and more), like plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper/aluminum and some ally tiles papers and others.
-The NF type probe for measuring the thickness of any non-magnetic coating on Non-Ferromagnetic metal base (aluminum, brass, stainless steel, etc. ), like anodizing, varnish, paint, enamel, plastic coating, power layers, and others.
-Microcomputer based, auto-detection, no damage to the coating surface.
-Metric/imperial system selectable, Auto power off.
-10 points value memory.
-Flip LCD display

-Suitable for the laboratory, Powder Coating Companies, Manufacturing Companies, Paint Suppliers, Manufacturing Companies, Steel and Aluminum Refinishing, Automobile Dealers, Auto Auctions, Body Shops, Auto Detailers and any company needing a highly accurate measurement of the dry coating thickness and can be used even in harsh field conditions.

Specification:
Range: 0 - 1250um; M, 0 - 50mil
Resolution: 1um0.1mils
Accuracy: +/-(3%+2um) or +/-(3%+0.1mils)
Modes: Single & Continuous
Battery Indicator: Low battery indicator
Metric/ Imperial: Convertible.

Memory: 10 points

Battery: 1.5V x 1, AAA size (not included)
Packing: Spectacle case, Bandbox





SR2802 Series Coating Thickness Gauge



Model: SR2802F, SR2802N, SR2802FN.
Features



-Includes F type (SR2802F), NF type (SR2802N) and F/NF 2 in 1 type (SR2802FN)
Easy Holding : Well designed housing and shape fits the hand comfortably
Nice Viewing : Dot Matrix display with two colors switchable (Black letter on white background and Green letter on black background). Reading is clearly visible on any conditions and angles .
Convenient Measurement : Simultaneously display the current reading in μm/mil,



Max, Min and Average value will be on the bottom of the screen . Makes the measurement more efficient and
comparable.
Easy Calibration: Calibration is unnecessary for most
conditions, if need, only place the probe on the uncoated
surface and press "ZERO" , or adjust the reading by "+" . "-"
Basic Functions
Auto switch on by place the the probe on a surface ,
And Auto goes off after 30s of inaction
Flip display
The MAX . MIN and AVE value are clearable
Low voltage indicator

Specification
Range 0-1250μm, 0-49mils
Accuracy  ±(2μm+3%H), H is standard thickness
Operation Temperature  -10°C-60°C
Storage Temperature  0-40°C
Dimensions  109x45x27mm
Weight  150With battery
Power Supply  1.5V AAA X 2
